JBeam
JBeam is a Java 6 application for introductory level two-dimensional static
and dynamic structural analysis. It supports arbitrary hinged Euler-Bernoulli
and Thimoshenko beams and truss elements.
Features
- object oriented graphical user interface

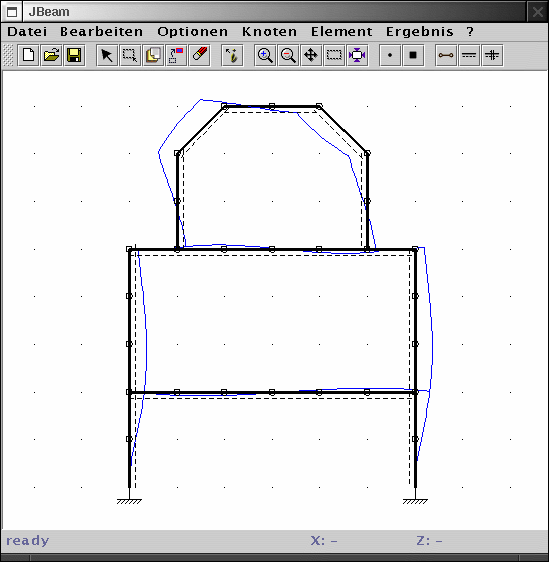

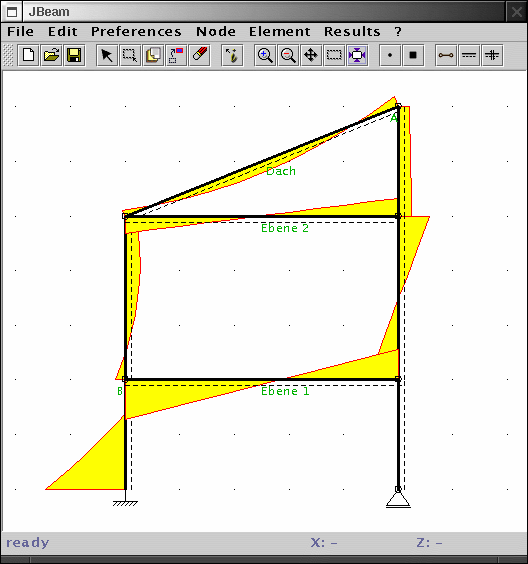

- static and modal analysis of plane frame structures
- customizeable view and snap grid
- beam and truss elements, optional modelling of shear deformation
- arbitrary hinged elements
- nodal loads
- linear distributed loads
- numerical output to ASCII or HTML file
- implemented on Java 6 platform, JDK/JRE 1.6 and higher supported
- runs as application or applet
Subscription
Changes will be announced on freecode.com. You may subscribe there to
new
releases of JBeam.
Feedback
Feel free to report any suggestions, improvements, corrections and problems to
jbeam@schwebke.com.
